Headrick, OK – 443.300 MHz
Status: Operational
Comments: Linked to the 442.525 in Lawton, OK

Status: Operational
Frequency: 443.300 MHz + / 123.0 Hz PL
Coordinates: 34° 41' 71'' N 99° 08' 52'' W
Tower Height: 25
Site Elevation: 2103
Repeater: Motorola Quantar
Output Power: 110 Watts
Antenna: Decibel DB-420, DB-420B, 9.2dB gain, omni pattern at 30' top of tower
Feedline: Cablewave 7/8
Emergency Power: none








Grandfield, OK

442.200 MHz + / 123.0 Hz PL

Status: Operational

Coordinates: 34° 12' 55'' N 98° 43' 13'' W
Tower Height: 350
Site Elevation: 1112
Repeater: Motorola R100
Output Power: 100 Watts
Antenna: Decibel DB-420B, 9.2dB gain, omni pattern at 365' up the tower
Feedline: Andrew LDF5-50A 7/8
Emergency Power: Generator






Cement, OK
444.450 MHz + / 123.0 Hz PL

Status: Operational
Comments: Linked to the 442.525 in Lawton, OK
Coordinates: 34° 56' 05'' N 98° 08' 08'' W
Tower Height: 60
Site Elevation: 1575
Repeater: Motorola QUANTAR
Output Power: 100 Watts
Antenna: Decibel DB-420B, 9.2 dB gain, omni pattern at tower top
Feedline: Andrew LDF5-50A 7/8








Medicine Park, OK

444.075 MHz + / 123.0 PL
Status: Operational
Coordinates: 34° 44' 22'' N 98° 29' 59'' W
Tower Height: 250
Site Elevation: 1575
Repeater: Motorola
Output Power: 100 Watts
Antenna: Decibel DB-420B, 9.2dB gain, omni pattern
Feedline: Andrew LDF5-50A 7/8
Emergency Power: Generator








VHF

West Lawton – 147.180 MHz
Status:
Operational
Frequency: 147.180 MHz + / PL 123.0
Coordinates: 34° 37' 27'' N 98° 30' 21'' W
Tower Height: 240
Site Elevation: 1232
Repeater: Yaesu FUSION
Output Power: 20 Watts
Antenna: Decibel DB-224E, 6dB gain, omni pattern at tower top
Feedline: Andrew LDF5-50A 7/8
Emergency Power: Coming soon











East Lawton – 147.330 MHz
Status:
Operational
Frequency: 147.330 MHz + / NO PL
Coordinates: 34° 37' 24'' N 98° 18' 18'' W
Tower Height: 125
Site Elevation: 1265
Repeater: Motorola GR400
Output Power: 100 Watts
Antenna: Decibel DB-224E, 6dB gain, omni pattern at tower top
Feedline: Andrew LDF4-50A 1/2"
Emergency Power: Coming soon

Wires-X

D-Star

DMR






Anadarko, OK – 147.270 MHz
Status:
Operational
Frequency: 147.270 MHz + / NO PL
Coordinates: 35° 07' 04'' N 98° 15' 43'' W
Tower Height: 260
Site Elevation: 1372
Repeater: GE Mastr II
Output Power: 100 Watts
Antenna: Stationmaster VHF Repeater Antenna
Feedline: Andrew LDF5-50A 7/8"
Emergency Power: Generator












Headrick, OK – 144.390 MHz
Frequency: 144.390 MHz / NO PL
Coordinates: 34° 41' 71'' N 99° 08' 52'' W
Tower Height: 25
Site Elevation: 2103

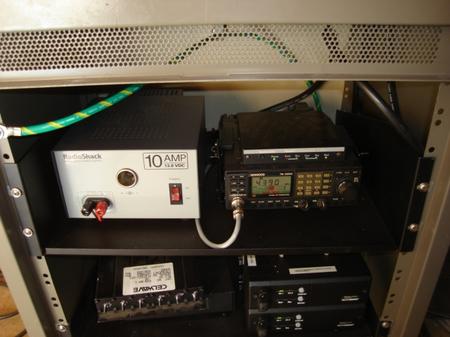

Repeater: Kenwood TM-2550A with Kantronics KPC-3, version 8.3
Output Power: 45 Watts
Antenna: Decibel DB-222E, 6.0 dB gain, pattern favors SE at 25' up the tower
Feedline: Andrew LDF4-50A 1/2
Emergency Power: APC 540 watt UPS

 East Lawton – 442.525 MHz

442.525 MHz + / 123.0 Hz PL
Status: Operational

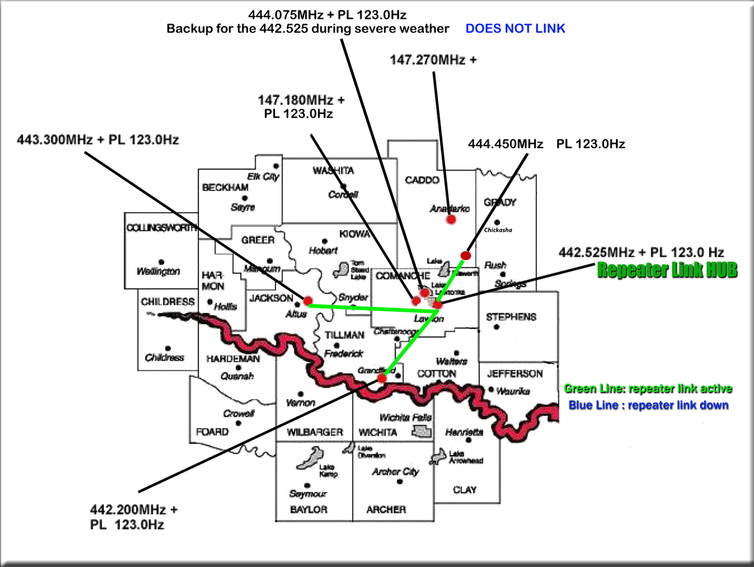

Comments: the Central machine for our link system.
Status:
Operational
Coordinates: 34° 37' 24'' N 98° 18' 18'' W
Tower Height: 125
Site Elevation: 1265
Repeater: Motorola MSR2000
Output Power: 100 Watts
Antenna: Decibel DB-420B, 9.2dB gain, omni pattern at tower top
Feedline: Andrew 1 5/8
Emergency Power: UPS
